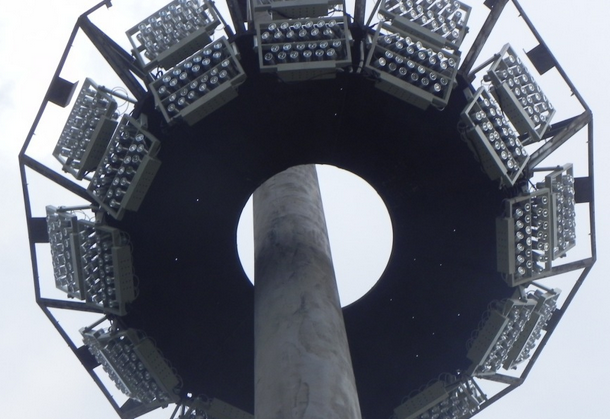

Causes of tripping during high mast light poles operation

Frequent tripping of high mast light pole during operation is often the result of multiple factors. This article will conduct a systematic analysis from four dimensions: electrical system failure, equipment selection defects, environmental factors, and insufficient operation and maintenance management.



I. Analysis of the mechanism of tripping caused by electrical system failure

1. Short circuit failure caused by line insulation failure

High mast light pole lines are mostly laid vertically with YJV-type cables, which are exposed to outdoor environments for a long time and are susceptible to multiple stresses:

Thermal stress damage: The internal temperature of the lamp head can reach above 70°C in summer, accelerating the thermal aging of the cable sheath. A case in a certain city shows that the insulation resistance of high mast light pole cables used for more than 5 years is generally lower than 2MΩ (standard value ≥10MΩ)

Mechanical stress damage: Cable bending fatigue caused by the swing of the lamp pole causes the conductor to contact the armor layer. Experimental data show that when the repeated bending radius is less than 8D (D is the outer diameter of the cable), the insulation life is shortened by 60%

Chemical corrosion: Salt fog penetration in coastal areas causes green rust on copper conductors, and the reduction in cross-section causes local overheating. Tests show that the annual growth rate of copper cable resistivity in a salt spray environment reaches 3-5%



 2. Leakage current exceeds the standard

Using the Fluke 1587 insulation tester, it was found that the internal leakage current of the lamp holder in a humid environment can reach more than 30mA (exceeding the leakage protection action threshold):

 Failure of the lamp seal causes rainwater to penetrate, forming a conductor-lamp pole path

 The driving power supply EMI filter capacitor superimposes the ground leakage current (a single lamp can reach 0.5mA)

 The total leakage current of a certain 18-head high-pole lamp system is measured to be 9mA, close to the critical value of the 10mA circuit breaker.



3. Overload caused by three-phase imbalance

When the lamps are unevenly distributed or partially damaged, it may cause:

Abnormal increase in neutral current (theoretical maximum can reach 173% of the phase current)

Zero-sequence current causes circuit breaker malfunction

Actual data of a renovation project: After replacing the LED lamp, the C phase current suddenly increased by 40%, triggering motor protection



II. Equipment selection and configuration defects

1. Mismatch of protection device parameters

Common problems include:

Insufficient circuit breaker breaking capacity (such as selecting 6kA products to cope with the expected 10kA short-circuit current)

Improper setting of leakage protector action current value (mixing 30mA and 100mA)

TThe thermo-magnetictripping curve does not match the load characteristics



2. Design defects of the power distribution system

Not considering the starting impact current (the starting current of HID lamps is 3 times the steady state)

Ignoring the voltage drop factor (25-meter pole length causes the terminal voltage to drop by 7-10%)

Imperfect lightning protection system (lack of three-level SPD coordination)

III. Acceleration of environmental factors

1. Microclimate environment impact

The "chimney effect" formed inside the lamp holder accelerates the moisture cycle

Condensation is caused by the temperature difference between day and night (the measured humidity in the lampshade can reach 95%RH)

Line short circuit caused by bird nesting (accounting for 12% of the failure cases)



2. Electromagnetic interference problem

Harmonic pollution caused by adjacent communication base stations (measured THD can reach 15%)

Conducted interference generated by variable frequency drive power supply (noise exceeds the standard in the 30-50MHz frequency band)



IV. Key loopholes in operation and maintenance management

1. Lack of preventive detention

Failure to establish a regular insulation resistance detection system (quarterly testing is recommended)

The infrared thermal imaging detection cycle is too long (most units conduct annual inspections once)



2. Irregular maintenance operations

High-altitude operations cause secondary damage to cables

Failure to use a torque wrench causes loose terminals (recommended value: 16mm² terminal 25N·m)



V. Systematic solutions

1. Optimize electrical design

Use 3C-certified moisture-proof cables (such as WDZ-YJY23)

Configure intelligent circuit breakers (with overload warning function)

Implement equipotential bonding to reduce contact voltage



2. Improve the operation and maintenance system

Establish a status monitoring system (online monitoring of current and insulation parameters)

Formulate a four-level inspection system (daily, weekly, monthly, and annual inspections)

Use drones for high-altitude component inspections



3. Environmental adaptability transformation

Install intelligent dehumidification device (maintain lamp holder humidity ≤60%RH)

Use physical protection measures such as bird thorn protection

Implement cathodic protection (pole corrosion protection in coastal areas)



By building a "design-selection-installation-operation and maintenance" full life cycle management system, the tripping failure rate of high mast light poles can be reduced to less than 0.5 times/year. After a pilot project was applied, the average annual maintenance times dropped from 17 to 2 times, verifying the effectiveness of the systematic solution. It is recommended that relevant units establish a fault database, use big data analysis to achieve predictive maintenance, and continuously improve the reliability of the lighting system.
