Decoding Battery Troubles: Understanding Chemical Failures in Lead-Acid Marine Batteries



Decoding Battery Troubles: Understanding Chemical Failures in Lead-Acid Marine Batteries

Marine batteries, particularly the common lead-acid batteries, are the unsung heroes powering our boating adventures. However, like any electrochemical device, they are susceptible to various failures. Understanding the common chemical issues that can plague your 12V battery or other voltage marine batteries is crucial for proper maintenance and timely replacement, ensuring your vessel's electrical systems remain reliable. In this article, we'll delve into two prevalent chemical failure modes: irreversible sulfation and active material shedding.



1. The Silent Killer: Irreversible Sulfation (Sulfation)




• Typical Symptoms: One of the first indicators of irreversible sulfation is an abnormally high voltage reading during charging, often reaching up to 2.9V per cell (for a 12V battery, this would equate to around 17.4V). Simultaneously, the battery's ability to hold a charge and deliver power will drastically decrease, with the discharge capacity plummeting to below 30% of its nominal rating.


• Causes and Mechanism: Sulfation is a natural process in lead-acid batteries where sulfate crystals form on the lead plates. However, irreversible sulfation occurs when these crystals become large, hard, and resistant to being converted back into active material during the charging process. This happens due to factors like:

  • Prolonged Undercharging: When a battery is consistently not fully charged.
  • Storing in a Discharged State: Leaving a battery discharged for extended periods allows sulfate crystals to harden.
  • Electrolyte Stratification: Uneven concentration of sulfuric acid within the battery, often due to lack of mixing, can promote sulfation in certain areas of the plates.


• Progression: The buildup of these hard sulfate crystals acts as an insulator, reducing the active surface area of the lead plates available for electrochemical reactions. This hinders the battery's ability to accept a charge and deliver its rated capacity. Over time, sulfation leads to a gradual decline in performance and eventually battery failure.


• Reference Parameters: Monitor the charging voltage and discharge capacity. A healthy 12V battery should typically charge around 13.8-14.4V (depending on the charging stage) and maintain its rated amp-hour capacity under load.


• Observed Phenomena: You might notice your marine battery charging very quickly to a high voltage but then draining rapidly when under load. The battery might also feel unusually hot during charging.


• Example Case: Consider a sailboat owner who docks their boat for the winter without properly charging and maintaining their 12V battery. When they return in the spring, they find that the battery charges rapidly to over 17V, but can barely power the cabin lights for more than a few minutes. This is a classic case of irreversible sulfation.



2. The Muddy Demise: Active Material Shedding

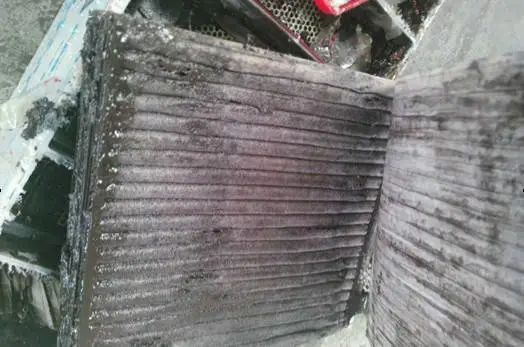

• Development Process: Active material shedding primarily affects the positive plates of a lead-acid battery, which are made of lead dioxide. Over time and with repeated charge-discharge cycles, this material can gradually become powdery and detach from the grid structure. This shed material settles at the bottom of the battery, often making the electrolyte appear cloudy or like mud.


• Causes and Mechanism: The primary cause of active material shedding is the physical stress on the positive plates during the expansion and contraction that occurs with each charge and discharge cycle. Deep discharges, in particular, can accelerate this process as the active material undergoes more significant volume changes.


• Progression: As more active material is lost from the plates, the battery's capacity to store and deliver energy diminishes. The accumulation of shed material at the bottom of the battery can eventually lead to short circuits between the plates, causing premature battery failure.


• Quantifiable Indicators: A significant drop in the battery's cycle life is a key indicator. For example, a healthy marine deep cycle battery might be designed for 400 or more charge-discharge cycles, but with significant active material shedding, this could drop to below 200 cycles.


• Observed Phenomena: Besides reduced battery capacity and shorter runtime, you might notice the electrolyte in your 12V battery becoming dark and murky. In severe cases, this sediment can even be visible through the battery casing (if translucent).


• Example Case: Imagine a fishing charter boat that heavily relies on its marine deep cycle batteries to power fish finders, GPS, and livewell pumps throughout the day. After a couple of seasons of frequent and deep discharges, the boat owner notices that the batteries are no longer holding a charge as well as they used to, and the electrolyte appears dark and muddy. This suggests significant active material shedding has occurred, reducing the battery's capacity and lifespan.



 Preventing These Common Lead-Acid Battery Issues


While these chemical failures can occur naturally over time, proper maintenance can significantly extend the life of your marine batteries. This includes:


• Ensuring full recharge after each use.

• Avoiding deep discharges whenever possible.

• Regularly checking and maintaining electrolyte levels (for flooded batteries).

• Using a smart battery charger that provides appropriate charging cycles.

• Storing batteries in a cool, dry place when not in use.


Power Your Vessel with Reliable BB Brand Marine Batteries from HZH Marine


At HZH Marine, we understand the importance of reliable power for your boating needs. Our BB Brand Marine Batteries are engineered for durability and performance in the demanding marine environment. We offer both Marine Starting batteries designed for powerful engine cranking and Marine Deep Cycle batteries built to provide sustained power for your onboard electronics.

Explore our range of high-quality BB Brand Marine Batteries and find the perfect power solution for your vessel!


Conclusion: Understanding Your Marine Battery for a Smooth Voyage

Understanding the common chemical failure modes of your lead-acid marine battery can help you identify potential issues early and implement preventative measures. Choosing high-quality batteries like the BB Brand from HZH Marine and practicing proper maintenance will ensure you have reliable power for all your boating adventures.
