Touch Integration: Capacitive vs. Resistive for TFT LCD Modules

Ever tapped your smartphone screen and marveled at how smoothly it responded? Or struggled with a screen in the rain that just wouldn’t register your touch? That’s all about touch integration, and when it comes to TFT LCD modules, the debate between capacitive and resistive touchscreens is hotter than ever.



Ever tapped your smartphone screen and marveled at how smoothly it responded? Or struggled with a screen in the rain that just wouldn’t register your touch? That’s all about touch integration, and when it comes to TFT LCD modules, the debate between capacitive and resistive touchscreens is hotter than ever. Whether you’re designing a rugged industrial display or the next-gen tablet, understanding the pros and cons of each type is crucial.

What is a TFT LCD Module?

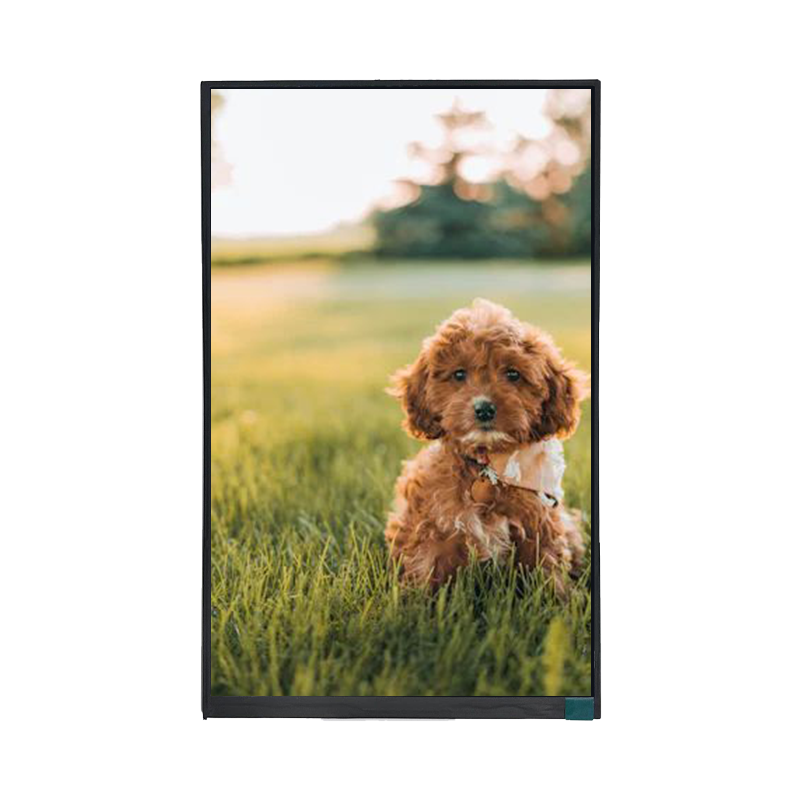

A TFT LCD module (Thin-Film Transistor Liquid Crystal Display) is the display tech behind most modern screens — from smartphones and tablets to ATMs and industrial monitors. It offers crisp visuals, fast refresh rates, and supports different types of touch technology.

Key components include:

TFT panel (the display)

Backlight unit

Touch panel

Controller board

Touch Screen Technologies in TFT LCDs

When it comes to touch integration, TFT LCDs typically use one of the following:

Capacitive touch
Resistive touch
(Others include infrared, optical, and SAW, but they’re less common in TFT LCDs.)

Let’s zoom into the two main contenders.

Capacitive Touch Technology

How Capacitive Touch Works

Capacitive touchscreens detect the electrical properties of your body. When your finger touches the screen, it disrupts the screen's electrostatic field — and voila, the system knows exactly where you touched.

Types of Capacitive Touch

Self-capacitive: Detects one touch at a time.

Mutual-capacitive: Supports multi-touch, making it ideal for gestures like pinch and zoom.

Advantages of Capacitive Touch

Highly responsive and accurate

Supports multi-touch gestures

Better optical clarity

Sleek, modern feel

Common Applications

Smartphones and tablets

Point-of-sale (POS) systems

High-end consumer electronics

Resistive Touch Technology

How Resistive Touch Works

Resistive touchscreens use pressure. They have two flexible layers separated by a small gap. Pressing the screen causes the layers to touch, registering the input.

Types of Resistive Touch

4-Wire Resistive

5-Wire Resistive (more durable and accurate)

8-Wire Resistive (less common but more sensitive)

Advantages of Resistive Touch

Works with gloves, stylus, or any object

Generally cheaper to produce

More resistant to dust and water

Common Applications

Industrial control panels

Medical instruments

Outdoor kiosks

Capacitive vs. Resistive Touch: A Head-to-Head Comparison

Accuracy and Sensitivity
Capacitive: More accurate with fast response times.
Resistive: Less sensitive but still reliable with proper calibration.

Durability and Lifespan
Capacitive: Susceptible to scratches; glass is fragile.
Resistive: Can handle tough conditions, but the flexible layers wear out over time.

Cost Implications
Capacitive: Generally more expensive due to materials and technology.
Resistive: Budget-friendly and widely available.

Environmental Suitability
Capacitive: Not ideal in moist or gloved conditions.
Resistive: Performs well in harsh environments — rain, dust, or gloves? No problem.

Input Method Compatibility
Capacitive: Needs skin contact or capacitive stylus.
Resistive: Works with anything — finger, pen, stylus, glove.

Industry Use Cases

Consumer Electronics
Capacitive dominates here. Think iPhones, tablets, and smart appliances.
Industrial Equipment
Resistive wins due to rugged reliability and glove-friendliness.
Medical Devices
Often use resistive due to the ability to operate with tools or gloves.
Automotive Interfaces
A mix of both is seen — capacitive for infotainment, resistive for harsh exterior panels.

Which Should You Choose for Your Application?

Ask yourself:

Will users be wearing gloves?

Is the device exposed to moisture?

Does it require gesture input?

Is the budget tight?

Go capacitive if you want slick UX and multi-touch. Choose resistive for durability and versatility.

Future Trends in Touchscreen Technology

Tech never sleeps, and neither does touchscreen innovation.

Hybrid Touch Panels: Mixing resistive and capacitive for best of both worlds
Flexible Screens: Bending displays = new integration challenges
AI-Enhanced Touch Recognition: Smart detection of finger, stylus, or glove

Summary of Key Differences

Feature	Capacitive Touch	Resistive Touch
Touch Method	Electrical (skin contact)	Pressure-based
Multi-Touch Support	Yes	Limited
Durability	Less in rugged use	High in harsh environments
Input Options	Bare finger or special stylus	Any object
Cost	Higher	Lower
Clarity	Excellent	Good, but may have glare

FAQs

1. What is the most durable type of touchscreen?
Resistive touchscreens are generally more durable for rugged environments due to their ability to withstand pressure and debris.

2. Can capacitive touchscreens be used with gloves?
Only special capacitive gloves or styluses work reliably; standard gloves typically don't.

3. Why are resistive screens used in medical devices?
Because they can be operated with gloves, styluses, or medical instruments without needing skin contact.

4. Are capacitive screens always better?
Not always. They’re better for consumer UX, but resistive is often the better choice for rugged or industrial use.

5. How do environmental conditions affect touchscreen performance?
Capacitive screens can fail in wet or gloved conditions, while resistive screens keep performing in tough settings like outdoors or in medical labs.
