Revolutionize Workholding Efficiency with Manual and Pneumatic Quick-Change Plates

Quick-change plates enable instant tooling swaps with precision alignment, minimizing downtime and maximizing machining efficiency.

In today’s fast-paced manufacturing and machining industries, maximizing productivity while maintaining precision is critical. Quick-change plate systems have emerged as a game-changing solution, offering seamless transitions between setups and significantly reducing downtime. This press release explores the differences between manual quick-change plates and pneumatic quick-change plates, their advantages, applications, and how they can transform your operations.

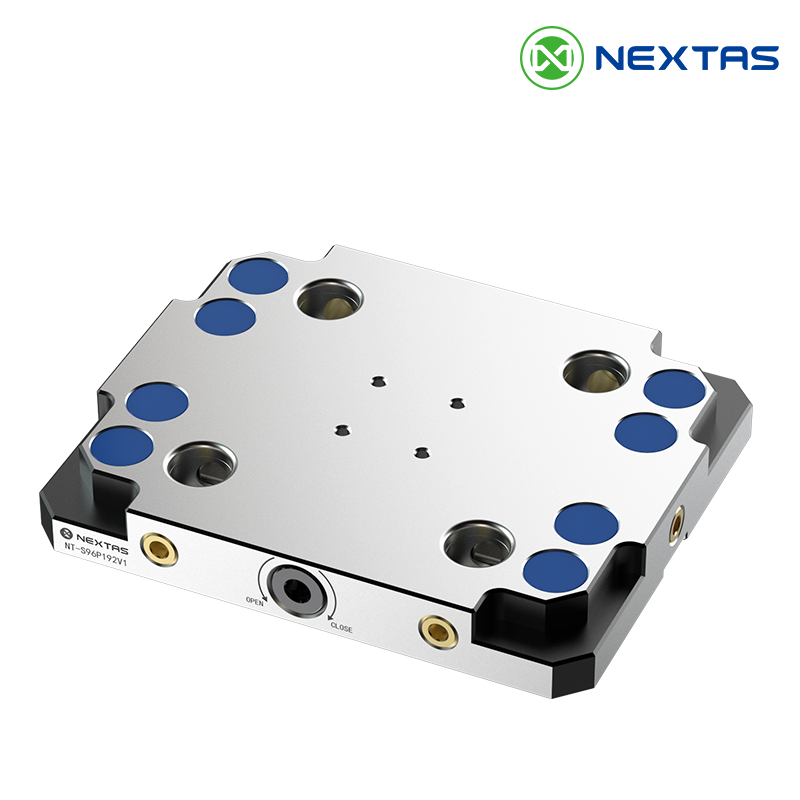

Manual Quick-Change Plate

Manual quick-change plates are workholding devices that allow operators to swiftly switch between fixtures or tooling setups using a mechanical clamping system. They typically employ bolts, levers, or knobs to secure the plate in place, ensuring repeatable positioning without extensive recalibration.

Pneumatic Quick-Change Plate

Pneumatic quick-change plates take automation a step further by using air pressure to engage and disengage the clamping mechanism. With the push of a button, the system locks or releases the plate, enabling even faster changeovers and reducing manual intervention.

Applications of Quick-Change Plates

Quick-change plates are widely used across industries, including:

• CNC Machining – Rapid switching between milling, drilling, and turning operations.
• Automotive Manufacturing – High-volume production with minimal downtime.
• Aerospace & Defense – Precision machining of complex components.
• Medical Device Production – Hygienic, fast setups for critical parts.
• Mold & Die Making – Efficient handling of heavy fixtures.

How to Use Manual Quick-Change Plates?

1. Align the plate with the machine’s mounting interface.
2. Secure it using clamping levers or bolts.
3. Verify positioning accuracy before machining.

How to Use Pneumatic Quick-Change Plates?

1. Place the plate onto the machine’s receiver.
2. Activate the pneumatic system (via button or foot pedal) to lock it in place.
3. Begin machining—no manual tightening required.

Both systems ensure repeatability within microns, making them ideal for high-precision work. While manual plates are cost-effective, pneumatic quick-change plates offer superior advantages:
✅ Lightning-Fast Changeovers – Swap plates in seconds, boosting throughput.
✅ Reduced Operator Fatigue – No manual clamping force needed.
✅ Higher Consistency – Eliminate human error in tightening.

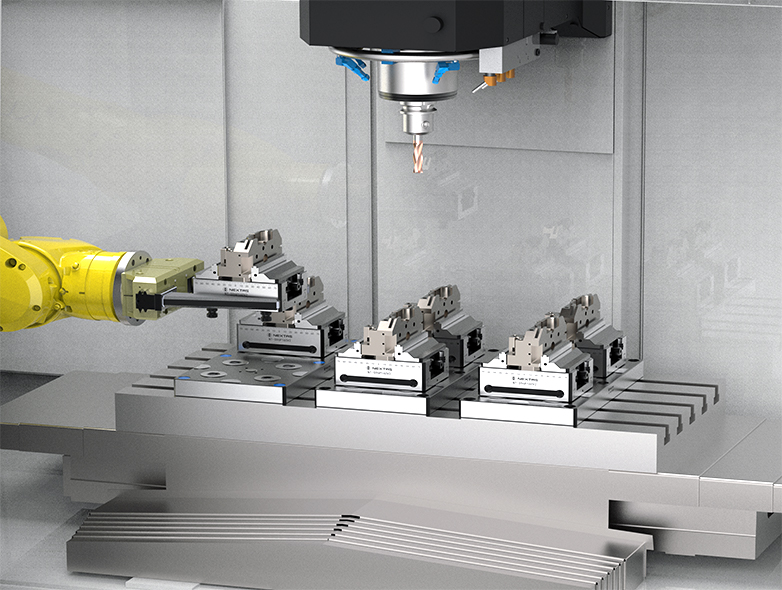

✅ Ideal for Automation – Integrate seamlessly with robotic systems.
✅ Long-Term Cost Savings – Faster cycles mean higher ROI.

Quick-change plates—whether manual or pneumatic—deliver unmatched efficiency, precision, and flexibility for modern manufacturing. By adopting these systems, businesses can slash setup times, improve accuracy, and stay competitive in demanding industries.
